Molds are a very useful tool in manufacturing. They assist make a lot of the goods we use every day. Plastic bottles, cans, toys, car components and clinical items are all crafted from molds.
But now not all shapes are equal.
Injection molds differ from other molds in process, layout, fee, and product kind. In this text, we explain the differences in quite simple words so that everyone can understand. We also highlight how experienced plastic injection mould manufacturers play an important role in mold design, quality, and production efficiency.
What Is an Injection Mold?
Such as an injection mold is used in plastic injection molding.
Also, in this method, plastic is melted and poured into a mould under high stress.
Simple steps:
- Plastic pellets are heated
- Plastic melts
- Melted plastic goes into mold
- Plastic cools
- Finished part comes out
This process is fast and accurate.
Injection molds are made from strong steel because they work under high heat and pressure.
Products Made by Injection Molds
Injection molds are used to make many products, such as:
- Bottle caps
- Food containers
- Mobile covers
- Car interior parts
- Medical tools
- Electronic housings
These products need high precision and smooth finishing.

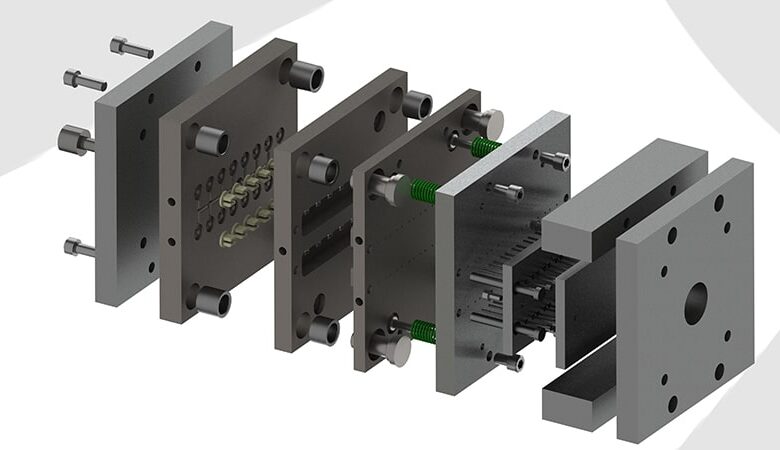

Main Parts of an Injection Mold
Injection molds have many parts.
Important parts include:
- Core and cavity
- Runner
- Gate
- Cooling channels
- Ejector pins
Each part has a job.
Cooling channels cool plastic.
Ejector pins push the part out.
Runners carry melted plastic.
This makes injection molds more complex than other molds.
What Are Other Types of Molds?
There are many other molds used in industry.
Common ones include:
- Blow molds
- Compression molds
- Transfer molds
- Rotational molds
- Die casting molds
- Thermoforming molds
Each mold type uses a different process and material.
Injection Molds vs Blow Molds
Blow molds are used to make hollow products.
Process is simple:
- Melt the plastic tube
- Put inside the mould
- Blow air
- Plastic expands
Products made:
- Water bottles
- Shampoo bottles
- Oil containers
Difference
Injection mold makes solid parts.
Blow mold makes hollow parts.
Injection mold uses pressure injection.
Blow mold uses air pressure.
Injection molds are more complex and costly.
Injection Molds vs Compression Molds
Such as compression molding uses heat and pressure.
Material is placed directly into the mold.
Then mold closes and presses the material into shape.
Used for:
- Rubber seals
- Silicone parts
- Electrical items
Difference
Injection mold injects melted plastic.
Compression mold presses raw material.
Injection molding is faster.
Compression molds are simpler and cheaper.
Injection Molds vs Transfer Molds
Such as transfer molding is similar to compression molding.
The material is heated first in a chamber.
Then it moves into the mold cavity.
Used for:
- Electronic encapsulation
- Thermoset plastics
Injection molds are better for thermoplastics.
Transfer molds are used for special industrial parts.
Injection Molds vs Rotational Molds
Rotational molding makes large hollow products.
Process:
- Add plastic powder
- Heat mold
- Rotate mold
- Plastic sticks inside
Products made:
- Water tanks
- Kayaks
- Storage containers
Difference
Injection mold uses high pressure.
Rotational mold uses no pressure.
Injection molds make precise parts.
Rotational molds make thick hollow items.
Rotational tooling is cheaper but slower.
Injection Molds vs Die Casting Molds
Die casting molds are used for metals.
Process:
- Melt aluminium or zinc
- Inject into mold
- Cool and eject
Products made:
- Engine parts
- Machine housings
- Hardware
Difference
Injection molds use plastic.
Die casting molds use metal.
Die casting needs very high heat.
Tooling cost is much higher than that of plastic injection molds.
Injection Molds vs Thermoforming Molds
Thermoforming uses plastic sheets.
Process:
- Heat the plastic sheet
- Place over mold
- Use a vacuum or pressure
- Form shape
Products made:
- Food trays
- Blister packs
- Disposable boxes
Difference
Injection mold injects melted plastic.
Thermoforming shapes heated sheets.
Injection molds make thick parts.
Thermoforming makes thin parts.
Thermoforming molds are cheaper but less precise.
Cost Difference
Tooling cost comparison:
Mold Type Tool Cost
Injection High
Blow Medium
Compression Low
Rotational Medium
Die Casting Very High
Thermoforming Low
Injection molds cost more at the start but save money in mass production.
Production Volume Difference
Injection molds are best for:
- High volume production
- Millions of parts
- Precision industries
Other molds are better for:
- Hollow bottles → Blow molding
- Rubber items → Compression
- Tanks → Rotational
- Metal parts → Die casting
So mold choice depends on the product’s needs.
Precision and Quality Difference
Injection molds give:
- High accuracy
- Smooth finish
- Fine details
- Logo engraving
Other molds usually give medium precision.
That is why injection molding is used in the medical and electronics industries.
Automation and Speed
Injection molding is highly automated.
Features include:
- Robotic handling
- Fast cycles
- Automatic feeding
Other molding methods need more manual work.
So injection molding saves labour costs in mass production.
Choosing the Right Manufacturer
Working with experienced suppliers is very important.
Professional plastic injection mould manufacturers provide:
- Mold design
- Engineering support
- Precision machining
- Testing services
You can also explore mold development solutions and production support at https://moldpartner.com/ for detailed manufacturing capabilities.
Conclusion
Injection molds are very different from other types of molds.
They offer:
- High precision
- Complex design ability
- Fast production
- Long mold life
But they also have higher tooling costs.
Other forms, along with blowing, compression, rotation and thermoforming, are used for exclusive products and materials.
So the pleasant shape type depends on:
- product length
- content material
- manufacturing quantity
- finances
Understanding those differences enables companies to choose the proper production technique and shop fees for long-term production.
